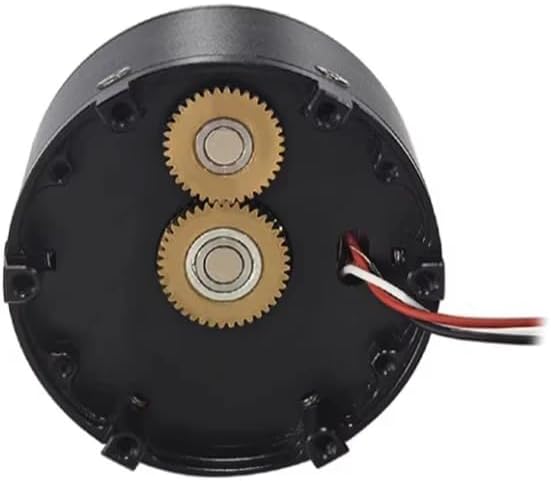

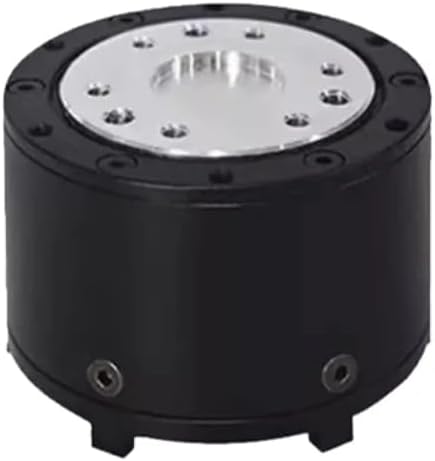

Planetary Gear Stepper Motor GIM3505-9 – 9:1 Gearbox High Torque BLDC Motor for Robotic Arms, Joint Modules, Robot Dog – 0.71Nm Rated 258RPM Integrated Joint Motor for DIY Robotics, Automation

Planetary Gear Stepper Motor GIM3505-9 – 9:1 Gearbox High Torque BLDC Motor for Robotic Arms, Joint Modules, Robot Dog – 0.71Nm Rated 258RPM Integrated Joint Motor for DIY Robotics, Automation Description: This compact planetary gear motor module is designed for small robotic arms, joint modules, and wheeled robot applications. It features dual encoder feedback, low backlash, and supports CAN and RS485 communication for precise control. With a 9:1 reduction ratio and IP54 protection, it delivers reliable performance in compact spaces. Specifications: Rated Voltage: DC 24V Voltage Range: DC 12–40V Rated Power: 38.4W Rated Torque: 0.71 N·m Stall Torque: 1.95 N·m Rated Speed (after reduction): 258 RPM Max Speed (after reduction): 380 RPM Rated Current: 1.6A Stall Current: 4.19A Phase-to-Phase Resistance: 4.466Ω Phase-to-Phase Inductance: 0.45mH Speed Constant: 15.83 RPM/V Torque Constant: 0.35 N·m/A Number of Pole Pairs: 0:00 Pairs Reduction Ratio: 9:1 Reducer Type: Planetary Reducer Gear Material: ALU Reducer Backlash: 15 arcmin Motor Weight: 120g Motor Dimensions: 45 × 32.3 mm Max Axial Load: 75N Max Radial Load: 300N Noise Level: <60dB Communication Protocol: CAN & RS485 Protection Rating: IP54 Package List: 1 x Planetary Gear Stepper Motor

• This compact planetary gear motor module is designed for small robotic arms, joint modules, and wheeled robot applications.
• It features dual encoder feedback, low backlash, and supports CAN and RS485 communication for precise control.
• With a 9:1 reduction ratio and IP54 protection, it delivers reliable performance in compact spaces.
